SUNRAY INDUSTRIES

This is a heavy duty Machine and suitable for any sealable polymer upto 400 micron. The machine could produce very high pressure as well Temperature (adjustable for a very high range). Machine is user friendly as well stardy. Vacuum maximum in chember will be 28″ of Hg as per the altitude.

Material Used

Composition of material

Contact area of pouch ss-304 and MS coated for food safety.

Base and stand ss-304

Panel door is painted with special paint to provide a layer of insulation for electrical instalation.

Best used for

Best use for any kind of laminated pouch including Retort Pouches.

Availability

From the day of receiving the Purchase Order, we would require 60 Days (2 Months) to deliver the machine.

Technical Specifications

Type	Pneumatic chamber impulse-vacuum (heavy duty) trolley mounted
Power	4000VA
Voltage	220Vac
JAW	Single
Seal Width	SINGLE BAND OF 10mm/ (Approximate)
Sealing Length	300 mm EFFECTIVE
Chamber	500mm x 500mm x 150mm(single jaw) / 500mm x 800mm x 150mm (double jaw) MOC-SS304.
Pressure	6kg/Sq Cm.
Air	100 LPM.
Cooling	Natural atm. coling
Cooling Time	40sec- 120 sec.
Material	Any product in suitable sealable laminated pouch
Vaccum	Variable 15-28in hg../gas flashing (optional)
Indication	POWER-on, CYCLE – on, SEAL – on. VACCUM – on
Loading	Manual
Control	Normal logic control
Pressure Sensor	Optional
Closer	Nylon-Pneumatic.
Constraction	SS-304 , Nylon, PP & Alluminium, Frame and all side cover MS.
Attachment	Non magnetic tilted attachment & screw-holder

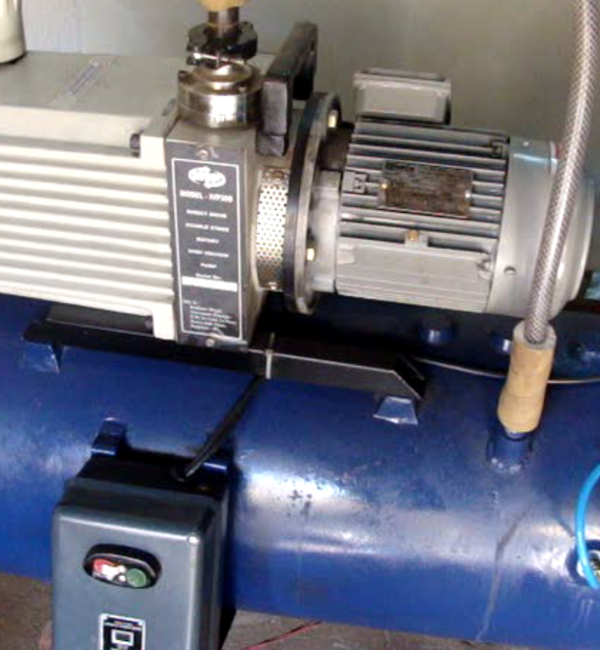

Vacuum pump 1-3ph hp with tank	Built-in as package.with accessories
