SUNRAY INDUSTRIES

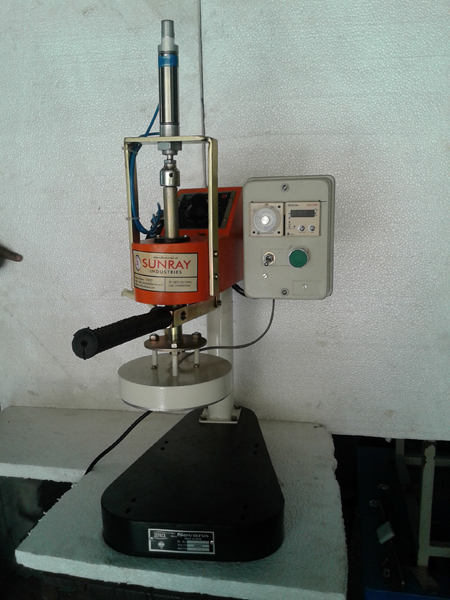

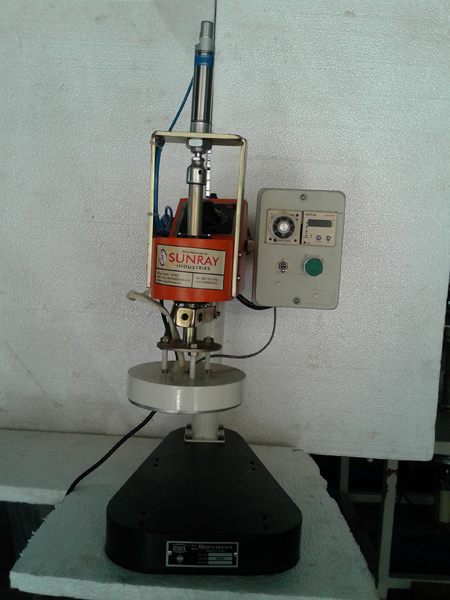

Bottle Sealer
This sealer is pneumatically operated. Pressure and temp. is pre set. dwell time for sealing is sateble.Height is adjustable from 100mm to 250mm, Height could be provided as per Customer’s requirment.
Material Used
Composition of material
Contact area of sealing alluminium
Base and stand ms powder coated
Panel ip-55 ms powder coated/ ss-304/PP
Best used for
Any type of Cup/Bottle/Tray made out of sealable Polymer.
Availability
From the day of receiving the Purchase Order, we would require 60 Days (2 Months) to deliver the machine.
Technical Specifications
| Type | Pneumatic Hot Plate |
|---|---|
|
Power |
700 VA |
|
Voltage |
220V AC |
|
Heating Watt |
500W |
|
Plate |
High th. conductive & dielectric strength. |
|
Pressure |
6kg/SqCm |
|
Air |
10 LPM |
|
Operation |
Hand switch |
|
Cooling |
Natural cooling |
|
Cycle Time |
4sec Per bottle |
|
Control Time |
By digital temperature controler |
|
Other Feature |
POWER-on, SEAL – on. HEATER ON |
|
FRL |
In-Built |
|
Painting |
Special coating & painting to suit any enviorment |
